Solids tilt level switch - SOLIBA EX P

Pour fermer, cliquez ici
Description

Description

The SOLIBA EX P is an ATEX certified tilt level switch for bulk solids located in hazardous areas 20, 21, 22 (dust) . It has been designed to provide high level measurement in silos or any other type of storage containers. Its operation is very simple: Vertically suspended at the desired high level point, the SOLIBA EX P will tilt as the grain reaches the unit. To secure your facilities at a minimum cost, the installation of a SOLIBA EX P high level mechanical tilt level switch is strongly recommended, even if your facilities are already equipped with other types of equipment such as: rotating paddles, vibrating forks, radars, capacitive and ultrasonic sensors, etc.

Applications

  • Grains and cereals: oats, sunflower, barley, soybean, rice, wheat, corn, sunflower, etc.
  • Animal food: for pets, for birds and poultry, for cattle, etc.
  • Powders: flou, sugar, cement, etc.
  • Other bulk solids: granules, stones, minerals, sawdust, pellets, etc.
  • High level measurement of silos, bins, hoppers, bulk storage zones, etc.
  • High level alarm (sound our light)

Description

ATMI
[ zoom ]

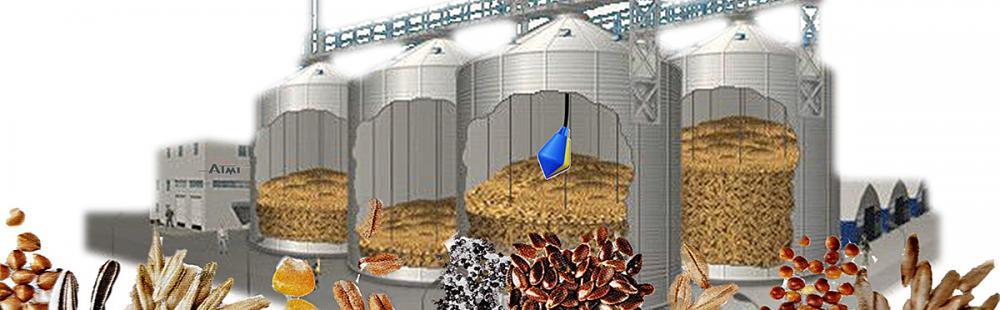

The SOLIBA EX P is an ATEX certified tilt level switch for bulk solids located in hazardous areas 20, 21, 22 (dust) . It has been designed to provide high level measurement in silos or any other type of storage containers. Its operation is very simple: Vertically suspended at the desired high level point, the SOLIBA EX P will tilt as the grain reaches the unit. To secure your facilities at a minimum cost, the installation of a SOLIBA EX P high level mechanical tilt level switch is strongly recommended, even if your facilities are already equipped with other types of equipment such as: rotating paddles, vibrating forks, radars, capacitive and ultrasonic sensors, etc.

Applications

  • Grains and cereals: oats, sunflower, barley, soybean, rice, wheat, corn, sunflower, etc.
  • Animal food: for pets, for birds and poultry, for cattle, etc.
  • Powders: flou, sugar, cement, etc.
  • Other bulk solids: granules, stones, minerals, sawdust, pellets, etc.
  • High level measurement of silos, bins, hoppers, bulk storage zones, etc.
  • High level alarm (sound our light)
 SOLIBA EX P-ATEX CERTIFIED_Technical Data Sheet  (PDF 559Ko)
 SOLIBA EX P-ATEX CERTIFIED_Wiring Diagram  (PDF 117Ko)
 ATEX certificat  (PDF 1042Ko)
SOLIBA EX P, ATEX certified

Advantages

  • Economical device, easy to install, easy to use
  • Robust construction, no risk of burial or clogging, even in low-density grains such as soy, sunflower, oats, and barley
  • Enhanced resistance to dust: IP 6X. The operation of the SOLIBA EX P tilt level switch is not affected even when the device is completely covered with dust !
  • Energy saving: The SOLIBA EX P tilt level switch only operates when the high level is reached, unlike other types of level measurement devices that operate permanently
  • Ecological tilt level switch (no mercury, no lead)

Installation recommendations

  • It is the customer's sole responsibility to determine whether or not its facility is located in a hazardous area.
  • The SOLIBA EX P tilt level switch must be installed at the opposite side of the arrival of grain and at a certain distance from the silo walls. This to ensure an optimal tilting operation.
  • For certain applications it is recommended to use an external ballast on the electrical cable. See external ballasts for SOLIBA tilt level switches.
  • A metal protection is available in option for any application involving physical shocks on the device or for high level detection of excessive-height bulk solids in all types of belt conveyors. See metal case for SOLIBA.

Technical characteristics

Operation mode By tilting
Switching angle+/- 10º from the vertical point
Cut-out power 10 (4) A (10A resistive – 4A inductive)
Cable type HR HY (High Resistance)
CertificationATEX II 1 D Ex ia IIC T6
Eligible zones Hazardous areas 20, 21, 22
ProtectionBy  calibrated fuse Un: 240V - In: 1A (not included with the device)

Remark: This model is also available in a GP version (Gas & Dust). Please see SOLIBA EX GP ATEX certified
