The BIP STOP is a small float switch designed for the automatic control of small pumps. It can be connected directly to pumps up to 1.5 HP or through a relay if working with high power pumps.

NetPilote création de site internet comité d'entreprise experts en sites dynamiques.

mardi 19 mars 2024

Level switch for pump control - BIP STOP

Description:

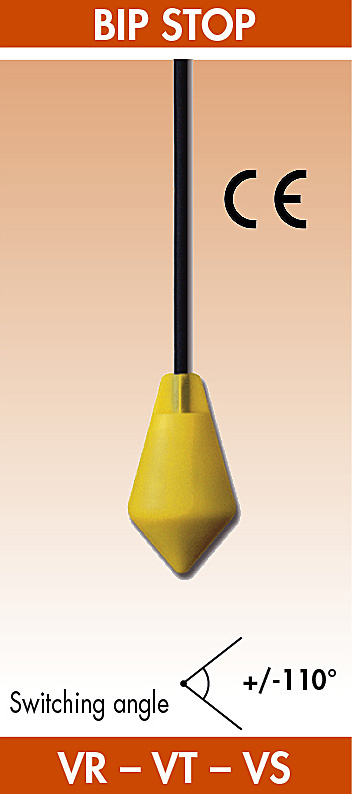

BIP STOP

The BIP STOP is a small float switch designed for the automatic control of small pumps (until 1.5 CV).

Thanks to its wide switching angle of 110º, the BIP STOP protects the pump's engine and the electrical panels from jerking. This feature is highly appreciated in agitated liquids.

Also, it can detect the both high and low level in the same tank whose hysteresis does not exceed 1.5 meter.

These float level switches are used wherever magnetic level controllers can not be used because of impurities or deposits that may trap the float.

The BIP STOP level switch is available in three versions :

ATMI
 Technical data sheet - BIP STOP  (PDF 603Ko)

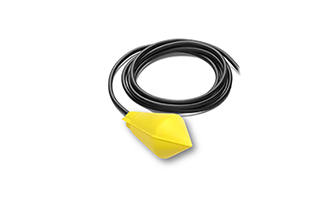

(1) VR :  Emptying/Filling

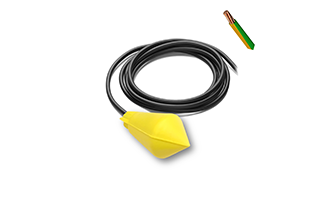

(2) VT : Emptying + ground wire

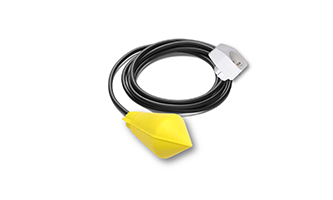

(3) VS : Special emptying mode with multifunction plug

The BIP STOP VR is the standard version. On request, it can be equipped with a cable with ground wire with plug multifunction  to activate the pump by connecting it directly from the plug of the float.

Very reliable, it is used in a wide range of applications ...

Advantages:

ECONOMIC

ECOLOGIC

RELIABLE

WATERPROOF

BICONICAL

CUTOMIZABLE

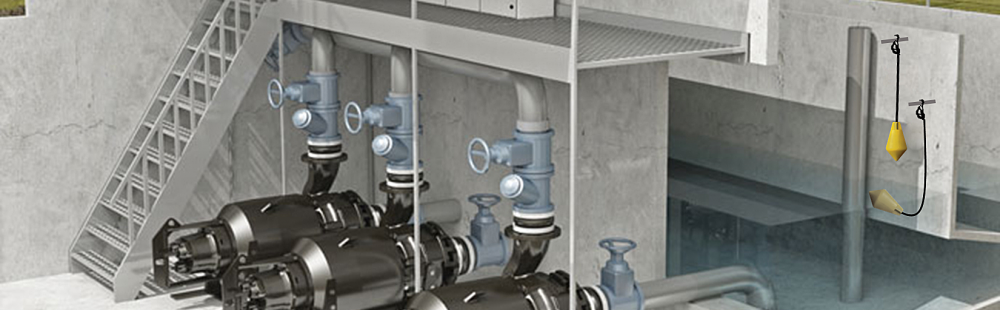

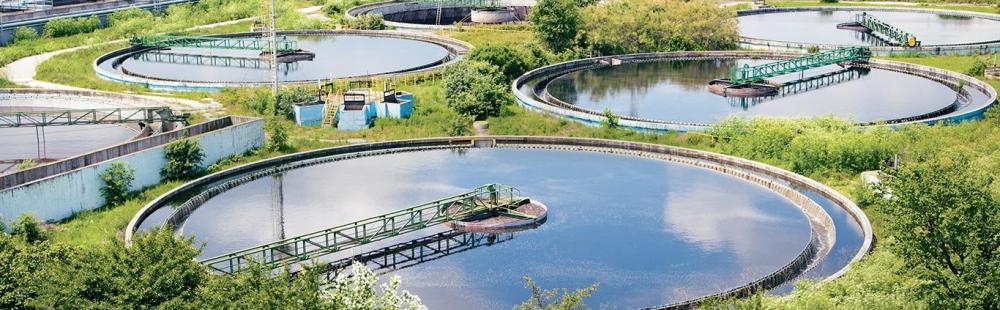

Application:

Technical caracteristics :

Switching angle +/- 110°
Allowed fluid density 0,70 to 1,15
Power supply 250 - 400 VAC /VDC 50/60 Hz
Cut out power 20 (8) A (20 A resistive; 8 A inductive)
Maximum pressure 3,5 bars
Allowed temperature 85 °C
Protection index IP 68
Housing material Copolymer Polypropylene
Cable 3 x 1 mmm˛ Neoprene, HR HY
Weight 105 g
Dimenssion Height : 130 mm - Diam : 70 mm
Ballast 175 - 250 g résine chargée
Cable lenght 5, 6, 10,13, 15, 20, 25 et 30

Recommended accessories:

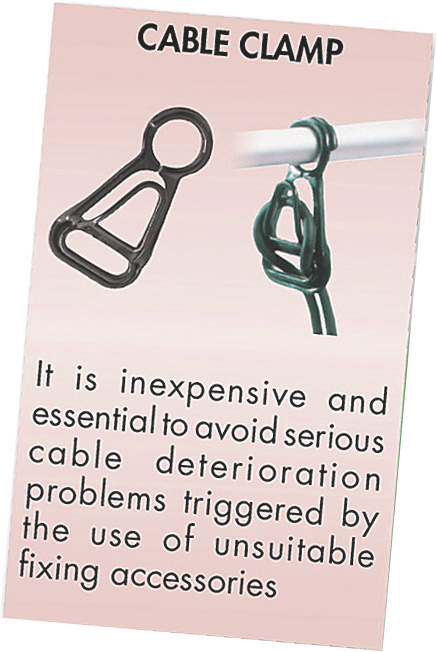

FIXCAB

Fixing accessory strongly recommended for all suspended floats

  • Avoid the risk of deterioration of the cable
  • Easy installation
  • Precise cable adjustment at all times
FIXCAB
ATMI
 Technical data sheet - FIXCAB  (PDF 335Ko)

AJUSTABLE BALLASTS

Adjustable ballast are essential for good operation of the floats level switches.

  • Set the rotation point of the float.
  • Allow the float to work in a wide range of densities
  • Precise adjustment at any time to adapt to any turbulence in the liquid
ADJUSTABLE BALLASTS
ATMI
