ATEX certified Level regulator

SOBA EX

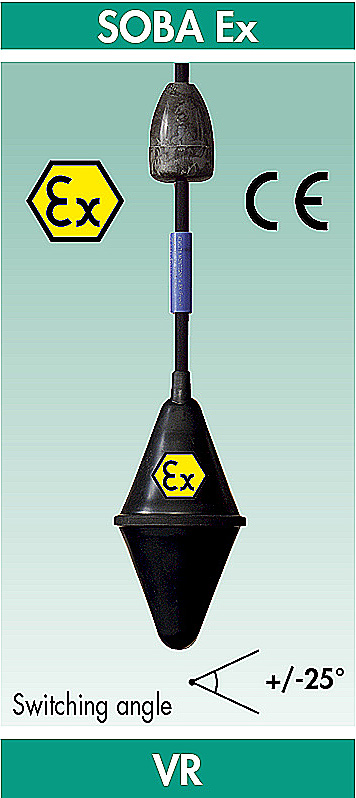

This ATEX certified float switch is ideal for hazardous environments 0, 1, 2 (gas) and 20, 21, 22 (dust). This float is encased in a HR HY (High Resistance HYpalon) press-vulcanised housing, which ensures a double waterproof, can ensure a regulation in very agressive liquids.

The SOBA EX ATEX certified level regulator are equipped with an external loaded resin ballast 250 g, adjustable on the cable, which facilitates the rotation point of the level sensor and allows it to work in a wide range of densities.

Thanks to its +/- 25º switching angle, the SOBA ensures a very precise level measurement. The device can also be used in high or low alarm.

ATMI
 Technical data sheet - SOBA EX ATEX certified  (PDF 520Ko)

Avantages :

ECONOMIC

ECOLOGIC

RELIABLE

DOUBLE WATERPROOF

BICONICAL

 ATEX CERTIFIED

Application

Technical caracteristics :

Switching angle +/- 25°
Allowed fluid density 0,80 to 1,10
Power supply 24 VAC/ VDC - 10 mA mini - 12 VAC/ VDC - 100 mA mini
Cut out power 10 (4) A (Protection with an intrinsec safety relay)
Maximum pressure 4 bars
Allowed temperature T6 : -20°C à +70°C
Protection index IP 68
Housing material HR HY + Copolymer Polypropylene
Cable 3 x 1 mmm² HR HY
Weight 300 g
Dimenssion Height : 200 mm - Diam : 92 mm
Ballast 250 g résine chargée
Cable lenght 5, 6, 10,13, 15, 20, 25 et 30

Accessories :

FIXCAB

Fixing accessory strongly recommended for all suspended floats

  • Avoid the risk of deterioration of the cable
  • Easy installation
  • Precise cable adjustment at all times
FIXCAB
ATMI
 Technical data sheet - FIXCAB  (PDF 335Ko)

PULSE ISOLATOR

Safety accessory to power ATEX devices at very low voltage.

  • Universal security relay
  • Eliminates the risk of explosion
  • ATEX certified

WARNING ! It should be known that it is up to the operator alone, to determine before any installation whether it is an area at risk of explosive

PULSE ISOLATOR
ATMI

Documentation(s) to download :
