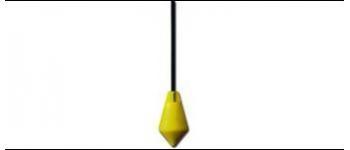

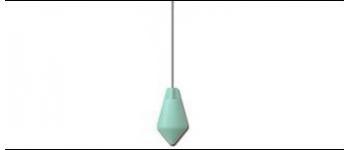

Floats level switches for pump control

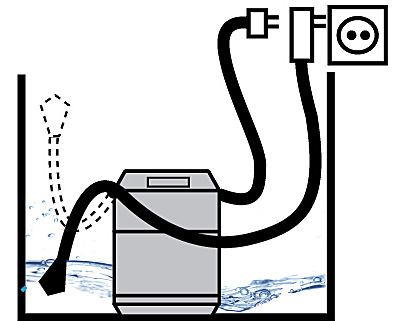

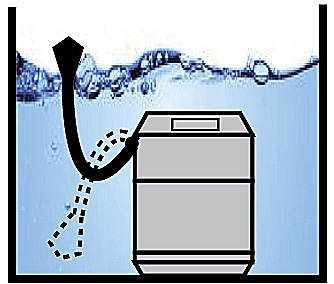

Float level switches open or close the pump supply circuit, either live or via a relay. The difference between the low level and the high level is obtained depending on the distance between the float and the point of attachment of the electric cable.

When the float level switches is used with adjustable ballast on the cable, it is the distance between the ballast and the float that determines the difference in regulation level (maximum 1.50 m recommended).Thanks to the specificity of our different float level switches, ATMI will find the ideal float for your single-phase pump and others.

Operation Principle

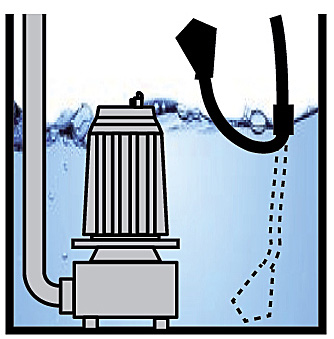

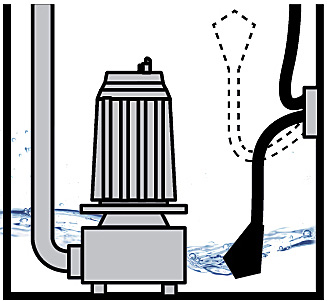

The float level measurement technology is the most simple, reliable, and economical technology on the market. For a typical pump automation, it is necessary to use two floats level switches: a first float switch to start the pump, and a second one to stop it. See animated image on the left.

For pump control of several levels with multiple pumps, for example, a third float switch needs to be added at the desired start level.

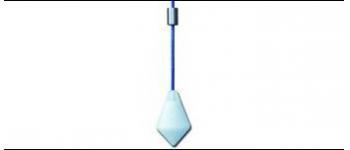

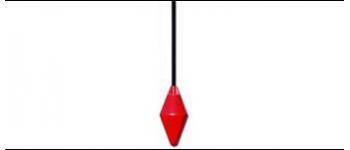

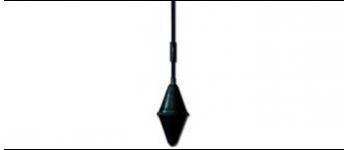

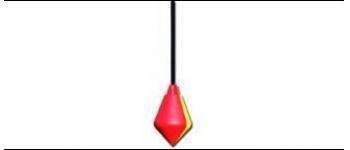

ATMI proposes you a range of float level switches for automatic control of all types of pumps, a range of level regulators with internal or external ballasts, as well as special small diameter float level switches for narrow-access tanks.

ATMI float switches, also known as “cable float level switches” are suitable for the most diverse applications. We have models ideal for clear water, loaded liquids, aggressive liquid mixtures, drinking water meant for human consumption (see our ACS certified floats), as well as level regulators for gas and dust hazardous environments (see our ATEX certified float switches).

To enhance the safety of your installations, we recommend you to install a float switch as high or low level alarm in complement to other types of level measurement devices such as ultrasonic sensors, radars, capacitive probes, etc.
