Metal case protection for SOLIBA tilt level switches

Description

SOLIBA PM

This detector has a very strong special protection. In fact, it consists of a cast aluminum metal cage and a level detector for solid SOLIBA  or SOLIBA EX P ATEX certified in zones 21, 22 (dust).

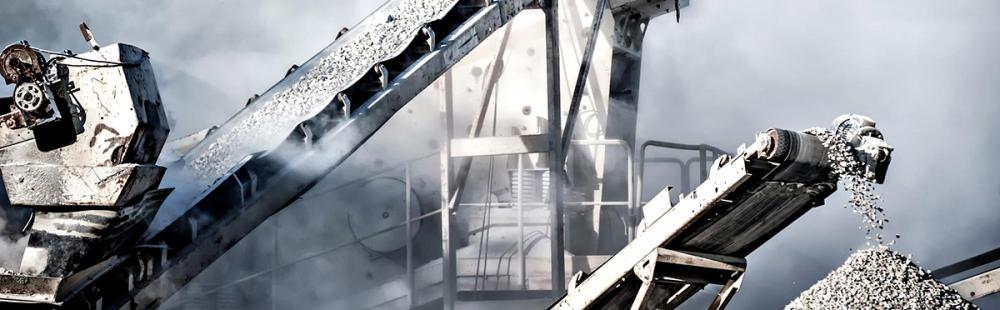

The metal case allows, without any risk of deterioriation, the high point level detection of voluminous bulk solids as well as the stop of all types of conveyor systems when dealing with excessive-height materials. A few application examples: - Gravel pits - Belt conveyors - All types of conveyor systems

The SOLIBA PLUS level detector is available in three versions :

ATMI
 Technical data sheet - SOLIBA PLUS  (PDF 532Ko)

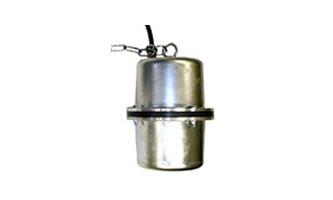

(1) SOLIBA PLUS

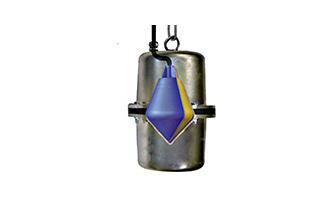

METAL CAGE + SOLIBA


(2) SOLIBA PLUS EX P
METAL CAGE + SOLIBA EX P


(2) METAL CAGE
ONLY METAL CAGE



Advice use

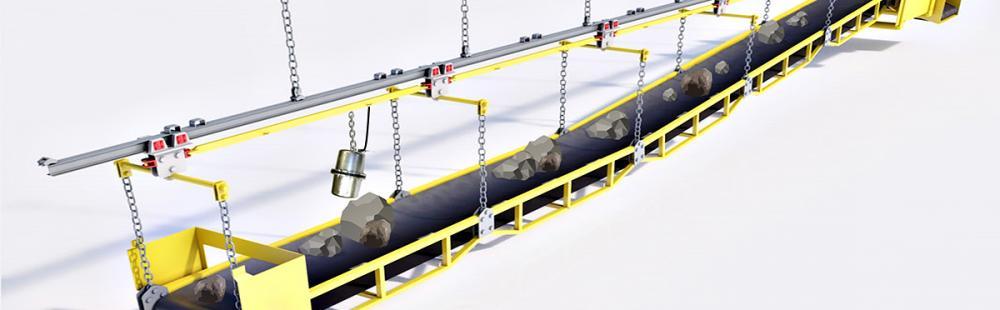

  • The level sensor SOLIBA PLUS must be suspended by a chain of reinforcement to avoid pulling the electric cable caused by the different shocks, and at a certain distance from the wall, in order to ensure an optimal displacement.
ATMI

Applications

Technical caracteristics

Switching angle +/- 10°
Power supply 250 VAC /VDC 50/60 Hz
Cut out power See SOLIBA or SOLIBA EX P
Allowed temperature 85 °C
Housing material Aluminium cast
Protection index IP 68
Cable 3 x 1 mmm˛ Neoprene or HR HY
Weight 2495 g
Dimenssion Height : 280 mm - Diam : 170 mm
Ballast 350 g résine chargée
Cable lenght 5, 6, 10,13, 15, 20, 25 et 30

Recommended accessories

FIXCAB

Fixing accessory strongly recommended for all suspended floats

  • Avoid the risk of deterioration of the cable
  • Easy installation
  • Precise cable adjustment at all times
FIXCAB
ATMI
 Technical data sheet - FIXCAB  (PDF 335Ko)

Documentation about SOLIBA PLUS :
