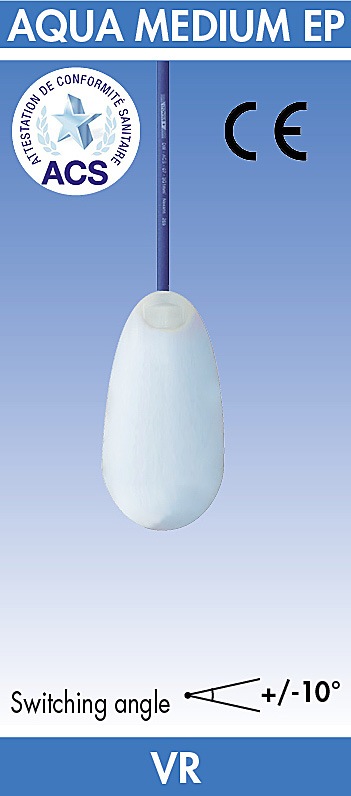

Float level regulator - AQUA MEDIUM EP, ACS certified

Description:

AQUA MEDIUM EP

This ACS certified float level switch is constructed with special components with internal ballast for use in drinking water applications.

As the liquid level reaches the unit, the mechanical switch inside will tilt, thus closing or opening a circuit connected to an electrical panel.

Thanks to its +/- 10° switching angle the float can ensures a very precise level measurement thanks. Also it can be used in high or low alarm.

However, the AQUA MEDIUM EP level regulator is not suitable for agitated liquids by the presence of an agitator or in a water tower. Please choose our float switch model: ATS 165 EP, ACS certified.

For pump control of several levels with several pumps in calm liquid with a float level switch equipped with a stainless steel adjustable ballast, choose the SOBA EP, ACS certified.

ATMI
 Technical data sheet - AQUA MEDIUM EP  (PDF 466Ko)

Advantages:

ECONOMIC

ECOLOGIC

RELIABLE

WATERPROOF

 ACS CERTIFIED

CUSTOMIZABLE

Application:

Technical caracteristics:

Switching angle +/- 10°
Allowed fluid density 0,95 to 1,05
Power supply 12, 24, 48 VAC /VCC -  250 VAC /VCC 50/60 Hz
Cut out power 16 (6) A (16 A resistive; 6 A inductive)
Maximum pressure 3,5 bars
Allowed temperature 85 °C
Protection index IP 68
Housing material Copolymer Polypropylene ACS certified
Cable 3 x 1 mmm˛ EPDM certified ACS
Weight 400 g
Dimenssion Height : 140 mm - Diam : 70 mm
Ballast 230 g stainless steel AISI 316 L
Cable lenght 5, 6, 10,13, 15, 20, 25 et 30

Important

WATCH OUT FOR PENALTIES !A Sanitary Conformity Certificate (ACS) is required in many countries for any device in contact with drinking water meant for human consumption. In France the ACS Certificate is mandatory since 2006. For more information about the ACS Certificate, please see our Drinking Water (ACS) section.

ATMI
 ACS certificate  (PDF 232Ko)

Recommended accessories:

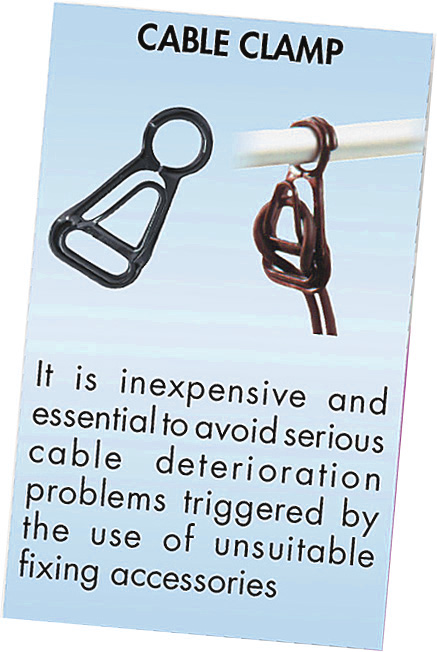

FIXCAB

Fixing accessory strongly recommended for all suspended floats

  • Avoid the risk of deterioration of the cable
  • Easy installation
  • Precise cable adjustment at all times
FIXCAB
ATMI
 Technical data sheet - FIXCAB  (PDF 335Ko)
