Solids tilt level switch - SOLIBA EX GP

Description :

ATMI

SOLIBA EX GP

This ATEX certified tilt level switch (CertificationATEX II 1 GD Ex ia IIC T6) has been designed to provide high level measurement in silos or any other type of storage containers located in hazardous areas 0, 1,2 (Gas) 20, 21, 22 (dust).

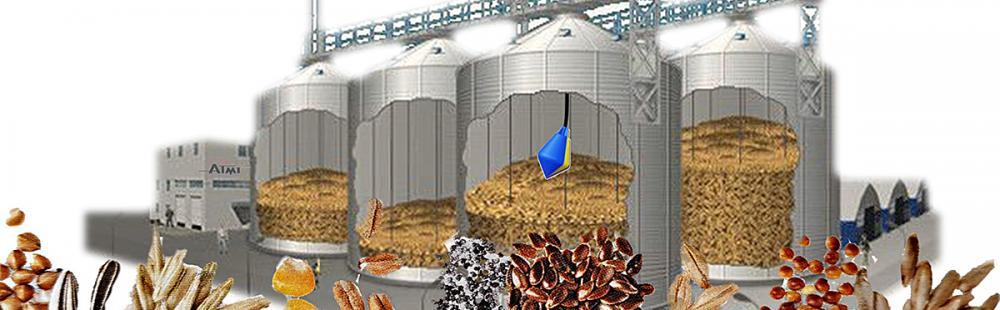

Its operation is very simple: Vertically suspended at the desired high level point, the SOLIBA EX GP will tilt as the grain reaches the unit.

To secure your facilities at a minimum cost, the installation of a SOLIBA EX GP high level mechanical tilt level switch is strongly recommended, even if your facilities are already equipped with other types of equipment such as: rotating paddles, vibrating forks, radars, capacitive and ultrasonic sensors, etc.

The SOLIBA EX GP tilt level switch only operates when the high level is reached, unlike other types of level measurement devices that operate permanently

The tilt level switch must be installed at the opposite side of the arrival of grain and at a certain distance from the silo walls. This to ensure an optimal tilting operation.

This model is also available in a P version (Dust). Please see SOLIBA EX P ATEX certified

Application

Technical caracteristics :

Switching angle +/- 10°
Use Hazardous areas 0, 1, 2 (Gas) 20, 21, 22 (Dust)
Certification ATEX II 1 GD Ex ia IIC T6
Power supply 24 VAC /VDC - 10 mA mini - 12 VAC /VDC - 100 mA mini -
Certification ATEX II 1 GD Ex ia IIC T6
Cut out power 10 (4) A (Protection with intrinsic safety relay
Allowed temperature T6 : - 20°C to + 70°C
Protection index IP 68
Housing material Copolymer Polypropylene + HR HY
Cable 3 x 1 mmm² HR HY
Weight 495 g
Dimenssion Height : 200 mm - Diam : 92 mm
Ballast 350 g résine chargée
Cable lenght 5, 6, 10,13, 15, 20, 25 et 30

Recommended accessories

ATMI

CABLE CLAMP

Fixing accessory strongly recommended for all suspended floats

  • Avoid the risk of deterioration of the cable
  • Easy installation
  • Precise cable adjustment at all times
CABLE CLAMP
ATMI

PULSE ISOLATOR

Safety accessory to power ATEX devices at very low voltage.

  • Universal security relay
  • Eliminates the risk of explosion
  • ATEX certified

WARNING ! It should be known that it is up to the operator alone, to determine before any installation whether it is an area at risk of explosive
