Float level switch for aggressive liquids - SOBA HR HY

Description:

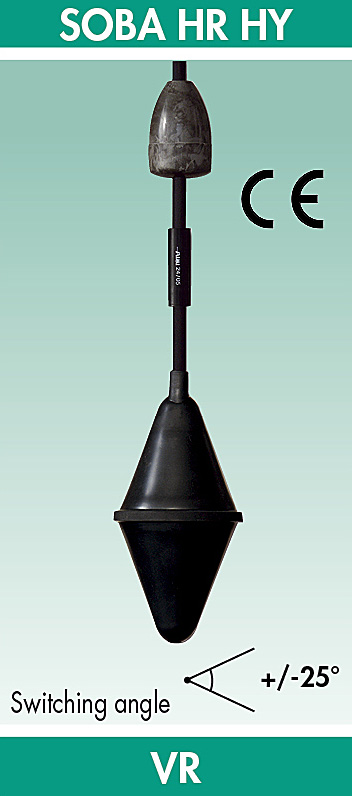

SOBA HR HY (High Resistance HYpalon)

This float level switche is a heavy duty float level switch designed for aggressive liquids. It is encased in a HR HY press-vulcanised housing, which ensures a double waterproof, can ensure a regulation in very agressive liquids.

The SOBA HR HY level regulator are equipped with an external loaded resin ballast 250 g, adjustable on the cable, which facilitates the rotation point of the level sensor and allows it to work in a wide range of densities.

Thanks to its +/- 25º switching angle, it ensures a very precise level measurement. The device can also be used in high or low alarm (overfill protection or protection against idling). If your installation is located in a hazardous area, choose our ATEX certified float switch SOBA EX.

Very reliable, it is used in a wide range of applications ...

ATMI
 Technical data sheet - SOBA HR HY  (PDF 510Ko)

Advantages:

ECONOMIC

ECOLOGIC

RELIABLE

DOUBLE WATERPROOF

RESISTANT TO CHIMICALS LIQUIDS

CUSTOMIZABLE

Applications:

Technical caracteristics:

Switching angle +/- 25°
Allowed fluid density 0,80 to 1,10
Power supply 12, 24, 48 VAC /VCC -  250 VAC /VCC 50/60 Hz
Cut out power 16 (6) A (16 A resistive; 6 A inductive)
Maximum pressure 4 bars
Allowed temperature 90 °C
Protection index IP 68
Housing material HR HY + Copolymer Polypropylene
Cable 3 x 1 mmm˛ HR HY
Weight 295 g
Dimenssion Height : 200 mm - Diam : 92 mm
Ballast 250 g résine chargée
Cable lenght 5, 6, 10,13, 15, 20, 25 et 30

Recommended accessories:

FIXCAB

Fixing accessory strongly recommended for all suspended floats

  • Avoid the risk of deterioration of the cable
  • Easy installation
  • Precise cable adjustment at all times
FIXCAB
ATMI
 Technical data sheet - FIXCAB  (PDF 335Ko)
