Economical float level switch - BIP ECO

Description:

BIP ECO

This float level switch (NO or NC) is the economical version of the BIP STOP. Indeed, it is technically similar to the BIP STOP but equipped with a high quality PVC cable instead of a neoprene cable.

Thanks to its wide switching angle of 100º, the BIP ECO protects the pump's engine and the electrical panels from jerking. This feature is highly appreciated in agitated liquids.

Also, it can detect the both high and low level in the same tank whose hysteresis does not exceed 1.5 meter.

These float level switches are used wherever magnetic level controllers can not be used because of impurities or deposits that may trap the float.





ATMI
 Technical data sheet - BIP ECO  (PDF 569Ko)

Advantages:

ECONOMIC

ECOLOGIC

RELIABLE

WATERPROOF

BICONICAL

CUTOMIZABLE

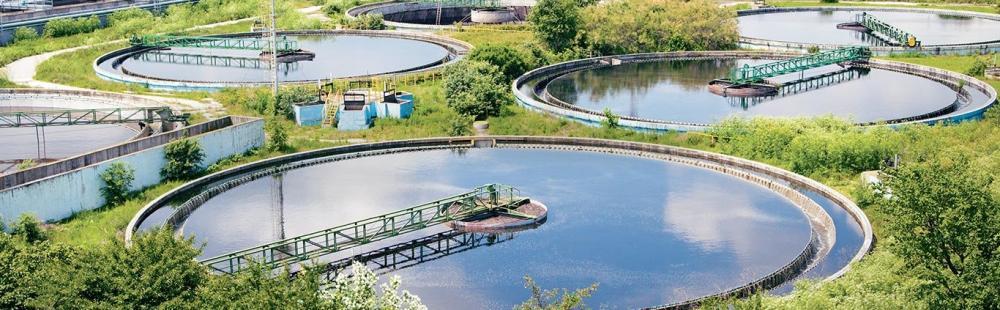

Application:

Technical caracteristics:

Switching angle +/- 100°
Allowed fluid density 0,70 to 1,15
Power supply 250 VAC/VDC 50/60 Hz
Cut out power 16 (6) A (16 A resistive; 6 A inductive)
Maximum pressure 3,5 bars
Allowed temperature 70 °C
Protection index IP 68
Housing material Copolymer Polypropylene
Cable 3 x 1 mmm˛ PVC HIGH QUALITY
Weight 105 g
Dimenssion Height : 130 mm - Diam : 70 mm
Ballast 220 g balls ballast
Cable lenght 5, 6, 10,13, 15, 20, 25 et 30

Recommended accessories:

FIXCAB

Fixing accessory strongly recommended for all suspended floats

  • Avoid the risk of deterioration of the cable
  • Easy installation
  • Precise cable adjustment at all times
FIXCAB
ATMI
 Technical data sheet - FIXCAB  (PDF 335Ko)

AJUSTABLE BALLASTS

Adjustable ballast are essential for good operation of the floats level switches.

  • Set the rotation point of the float.
  • Allow the float to work in a wide range of densities
  • Precise adjustment at any time to adapt to any turbulence in the liquid
ADJUSTABLE BALLASTS
ATMI
