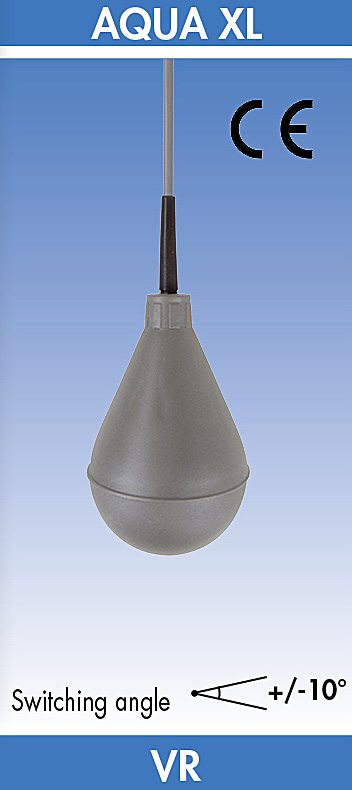

AQUA XL level regulator with internal ballast


The AQUA XL is a robust level regulator with internal ballast. As the liquid level reaches the regulator, the mechanical switch inside will tilt, thus closing or opening a circuit connected to an electrical panel. Thanks to its heavy weight (775g), the AQUA XL is capable of penetrating the thick layers of grease found on waste water pumping stations


  • Robust construction with internal ballast
  • Easy to install, easy to use
  • Ecological float switch (no mercury, no lead)


  • Clear, clean liquids, rain water
  • Wastewater, sewage water
  • Slightly aggressive liquids: oils, mud, etc.
  • Level control of multiple pumps
  • Emptying / Filling function
  • Overflow or dry-running protection
  • High / low level alarm


 AQUA XL technical data sheet  (PDF 457Ko)
 AQUA XL wiring diagram  (PDF 371Ko)


Operation mode Omnidirectionnal
Allowed fluid density 0,95 à 1,05
Maximum pressure 2 bars
Allowed temperature 70°C
Protection index IP 68
Power supply 250 VAC -  50/60 Hz
Cut-out power 10 (4) A (10 A résistive – 4 A inductive)
Housing material

Copolymer polypropylene

Cable 3 cond. 0.75 mm² PVC height quality
Weight without cable 775 g
Cable weight 65 g/m
Ballast Internal ballast
Standard cable lenght (serie) 6, 10, 15, 20 et 30 m


  • It is highly recommended to use cable hangers with our float level switches.
  • This model is also available in a smaller version for limited space applications. See AQUA MEDIUM.
  • The AQUA XL level regulator is not suitable for agitated liquids. Please choose our float switches models: BIP STOP, AT 120, or ATS 165.
