ATS 165 EP, ACS certified
Pour fermer, cliquez ici
Description
ATS 165 EP, ACS certified
Description

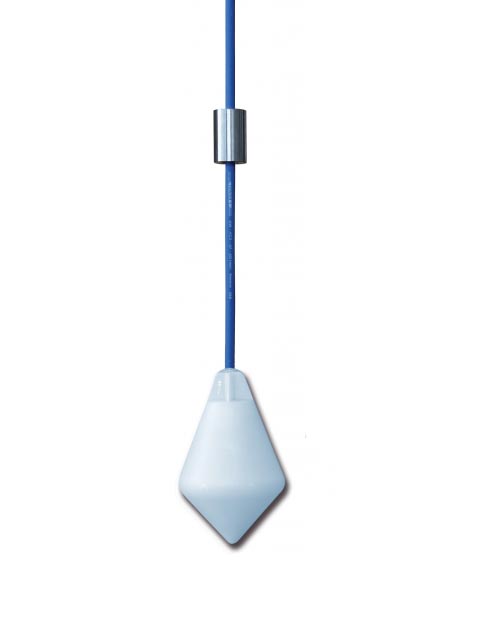

The ATS 165 EP is a robust float switch ACS certified constructed with special components for use in extremely agitated drinking water applications. Thanks to its big switching angle of 165º, this float ensures no jerking of the pump or electrical panels, and it is an ideal solution for level control in drinking water tower tanks. The ATS 165 EP is equipped with a stainless steel (AISI 316L) adjustable ballast, and it can be connected directly to pumps up to 1.5 HP or through a relay if working with high power pumps.

Advantages

  • 165º switching angle that protects the pump's engine from jerking
  • No maintenance needed, thanks to its biconical shape that avoids any clogging
  • Easy to install, easy to use
  • Ecological float switch (no mercury, no lead)

Applications

  • Drinking water for human consumption
  • Emptying / Filling function
  • Overflow or dry-running protection
  • High / low level alarm
Technical characteristics

Operation modeOmnidirectional
Switching angle+/- 165º
Maximum pressure3,5 bars
Allowed fluid density 0,70 to 1,15
Cut-out power20 (8) A (20A resistive – 8A inductive)
Cable typeSanitary EPDM
CertificationACS (Sanitary Conformity Certificate) according to the AFNOR XP P41-250 (1-2-3) standard
Remarks
  • WATCH OUT ! A Sanitary Conformity Certificate is required in many countries for any device in contact with drinking water meant for human consumption. In France the ACS Certificate is mandatory since 2006. To know more about the ACS Certificate, please see our Drinking Water (ACS) section.
  • is highly recommended to use cable hangers with our float level switches.
  • For pump control of several levels with several pumps in drinking water, choose the SOBA EP, ACS certified.
Documents for Download
 ATS 165 EP technical data sheet (PDF 307Ko)
 ATS 165 EP wiring diagram (PDF 1406Ko)
