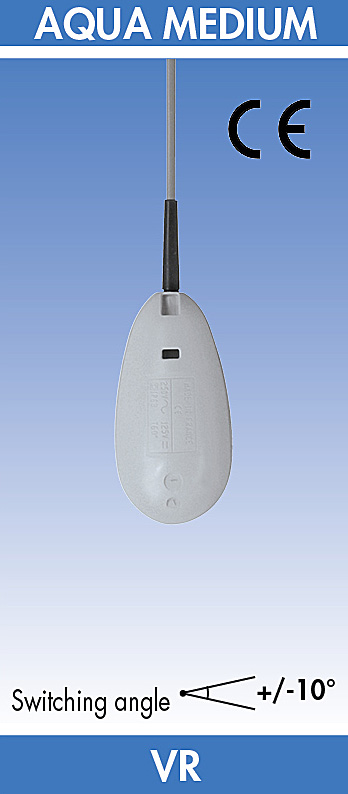

AQUA MEDIUM level regulator with internal ballast

Description

The AQUA MEDIUM is a robust level regulator with internal ballast. As the liquid level reaches the regulator, the mechanical switch inside will tilt, thus closing or opening a circuit connected to an electrical panel. The AQUA MEDIUM is capable of penetrating the thick layers of grease found on waste water pumping stations, and it is the ideal level regulator for limited spaced applications.

Advantages

  • Robust construction with internal ballast
  • Easy to install, easy to use
  • Ecological float switch (no mercury, no lead)

Applications

  • Clear, clean liquids, rain water
  • Wastewater, sewage water
  • Slightly aggressive liquids: oils, mud, etc.
  • Level control of multiple pumps
  • Emptying / Filling function
  • Overflow or dry-running protection
  • High / low level alarm

TECHNICAL DOCUMENTATION DOWNLOAD :

 AQUA MEDIUM technical data sheet (PDF 446Ko)
 AQUA MEDIUM wiring diagram (PDF 1264Ko)

TECHNICAL CHARACTERISTICS

Operation mode Omnidirectionnal
Allowed fluid density 0,95 à 1,05
Maximum pressure 3.5 bars
Allowed temperature 70°C
Protection index IP 68
Power supply 12, 24, 48  VAC/VDC and 250 VAC  50/60 Hz
Cut-out power 16 (6) A (16 A résistive – 6 A inductive)
Housing material

Copolymer polypropylene

Cable 3 cond. 0.75 mm² PVC height quality
Weight without cable 400 g
Cable weight 65 g/m
Ballast Internal ballast
Standard cable lenght (serie) 6, 10, 15, 20 et 30 m
Remarks
  • It is highly recommended to use cable hangers with our float level switches.
  • This model is also available in a bigger version. See AQUA XL.
  • The AQUA MEDIUM level regulator is not suitable for agitated liquids. Please choose our float switch models: BIP STOP, AT 120, or ATS 165.
